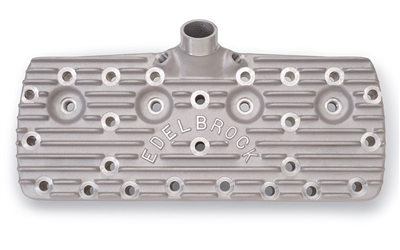

EDELBROCK CYLINDER HEADS 65CC FOR 1938-48 FORD FLATHEAD- BLOCK LOGO -- 1126

Our Price:$793.50

Part Number: 1126

Qty:

Description

EDELBROCK CYLINDER HEADS 65CC FOR 1938-48 FORD FLATHEAD- BLOCK LOGO -- 1126

Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. These heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

INSTALLATION NOTE: Flathead head copper gaskets for 1938-48 use Victor #3036; or Fel-Pro #7548; or Edelbrock Head Gasket Set #7394; for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Head stud kit for 1938-48, use #8505; Head stud kit for 1949-53, use #8502. Generator stud kit for 1938-48, use #8506.

Share your knowledge of this product with other customers... Be the first to write a review
